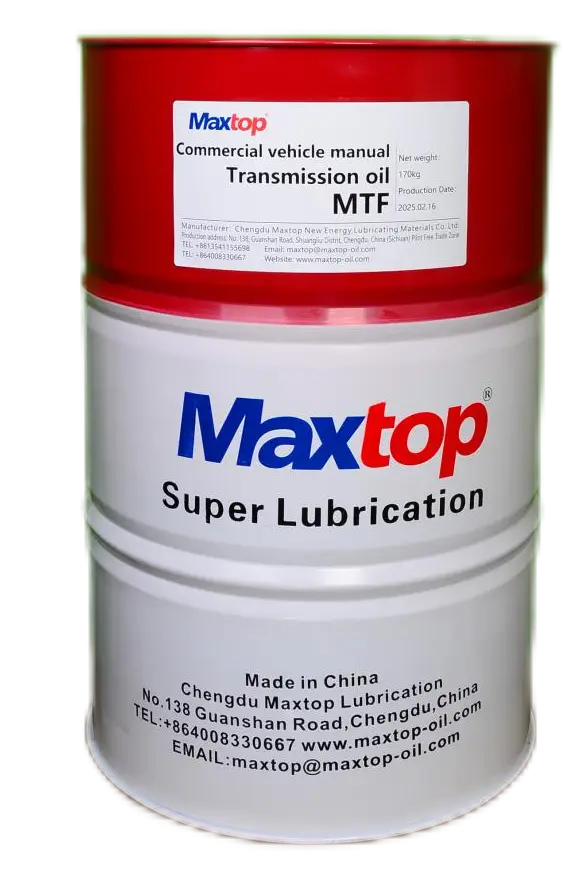

MTF Commercial Vehicle Manual Transmission Fluid

Print
Facebook
Email

MTF Commercial Vehicle manual transmission fluid is a high performance oil designed for heavy commercial vehicle manual transmission. It provides comprehensive protection and long-term stability for its high torque, heavy load and complex operating conditions. The core properties include: ultra-high extreme pressure wear resistance: A solid lubrication film is formed in the high pressure contact area between gear meshing and synchronizer, which reduces direct friction between metals, reduces the wear rate by more than 40%, and extends the overhaul cycle of the gearbox.

Performance Test Results

Project

Quality indicator

Quality indicator

Quality indicator

Viscosity class

75W/90

80W/90

85W/90

Kinematic viscosity (100℃), mm2/s

13.5~24.0

13.5~24.0

13.5~24.0

When the apparent viscosity reaches 150mpa·s, the temperature is not higher than ℃

-40

-26

-12

Grooving point, ℃ is not higher than

-45

-35

-20

Flash point (opening) /℃ not lower

165

175

185

Viscosity index is not less than

85

85

85

Corrosion test copper sheet (121℃, 3h), grade not greater than

2a

2a

2a

Mechanical impurities, % not greater than

0.08

0.08

0.08

Moisture, % not more than

vestige

vestige

vestige

Storage stability

  • Liquid precipitate, % (mass fraction) not greater than
  • Solid precipitate, % (mass fraction) not greater than

0.5



0.25

0.5



0.25

0.5



0.25

Foamability (tendency to foam), ml

  • 24℃ is not greater than
  • 93.5℃ is not greater than
  • After 24℃ is not greater than



20

50

20



20

50

20



20

50

20

Seal fit test

pass

pass

pass

Load capacity (CL-100 or FZG gear machine) Failure level is not less than

11

11

11

Thermal oxidation stability (L-60-1 test)

  • 100℃ kinematic viscosity increase, % is not greater than
  • Pentane insoluble matter /% (mass fraction) is not greater than
  • Toluene insoluble matter /% (mass fraction) is not greater than
  • Sludge score is not less than
  • Carbon/paint film score is not less than



100



3



2



9.4



7.5



100



3



2



9.4



7.5



100



3



2



9.4



7.5

Thermal stability (MACK cycle test)

pass

pass

pass
