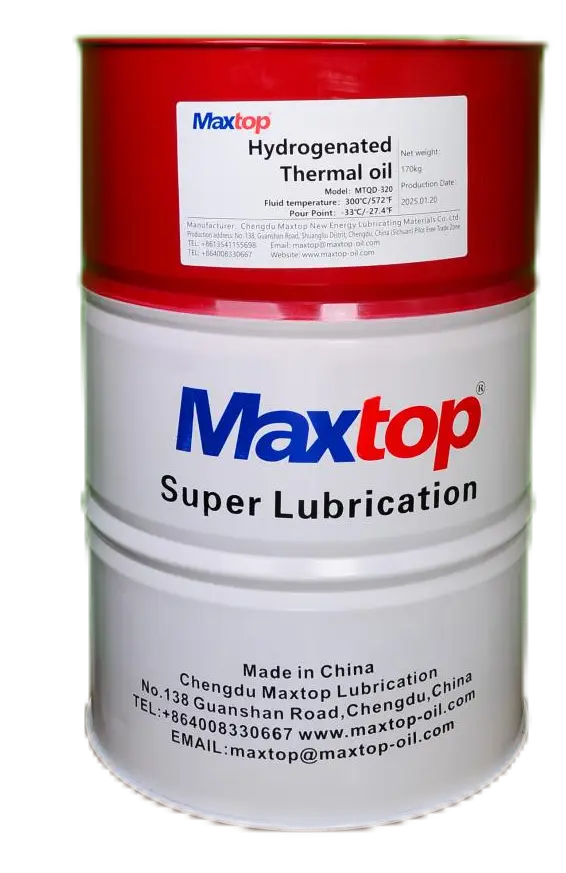

Hydrogenated synthetic heat transfer fluid

Print
Facebook
Email

Maxtop Hydrosynthetic heat transfer fluid (MTQD320) is a kind of high performance heat transfer oil, which is refined by high temperature and high pressure hydrocracking of highly saturated hydrocarbon base oil and added with self-developed compound additives. It has thermal stability and thermal oxidation stability, as well as excellent coking resistance and thermal conductivity retention. In operation, the acid value and carbon increase of the heat transfer oil is very small, and it will not be coking in the boiler system, thus saving energy, extending service life and reducing maintenance costs. In addition, it has excellent low temperature fluidity, easy cold start, and has good self-cleaning and metal surface protection properties. Suitable for closed or open system, the higher oil film temperature can reach 320℃, the higher main body temperature can reach 300℃.

Performance Test Results

Project

Quality indicator

Appearance

colorless clear liquid

Density (20℃)/(Kg/m3)

837.1

Kinematic viscosity mm2/s is not greater than 40℃

20.75

Kinematic viscosity mm2/s 100℃

4.217

Kinematic viscosity mm2/s 200℃

1.29

Kinematic viscosity mm2/s 300℃

0.76

Flash point (opening), ° C

221

Flash point (closed), ° C

210

Spontaneous ignition point, ° C

343

Pour point, ℃

-42

Copper corrosion (100℃,3h), grade

1a

Carbon residue (mass fraction), %

0.02

Acid value mgKOH/g

0.02

Initial distillation point /℃

359

Distillate 2%/℃

344

Minutes (mg/kg), %

18

Thermal oxidation stability (175℃, 72h)

Up to standard

Thermal stability (300℃,720h) metamorphism rate is less than

10%

High temperature at 300℃ / oxidation at 90℃ for 720 hours

Pass

High temperature at 300℃ / oxidation at 120℃ for 480 hours

Pass

High temperature at 300℃ / oxidation at 150℃ for 240 hours

Pass
